Pose Estimation

1. Overview​

This guide demonstrates how to perform real-time pose estimation on the Jetson Orin platform (Nano / NX / AGX) using the MediaPipe Python API, with GPU acceleration enabled (if supported).

Pose estimation is widely used in applications such as gesture recognition, fitness tracking, and human-computer interaction.

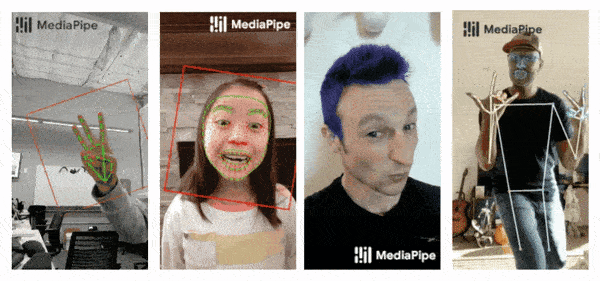

mediapipe-series-solutions

2. System Requirements​

Hardware​

  • Jetson Orin series (Nano，NX）
  • USB or CSI camera (Optional but recommended)

Software​

  • Operating System：Ubuntu 20.04 / 22.04 LTS（Base on JetPack）
  • JetPack：Official NVIDIA image (includes CUDA, cuDNN, TensorRT)
  • Python：Version 3.8 or higher recommended
  • MediaPipe（Python）：Install via pip
  • Dependencies：OpenCV，FFmpeg，GStreamer(for camera/video support)

3. Environment Setup​

Step 1: Update the System and Install Dependencies​

sudo apt update && sudo apt upgrade
sudo apt install -y \
    python3-dev python3-pip python3-opencv \
    libopencv-dev \
    libgstreamer1.0-dev libgstreamer-plugins-base1.0-dev \
    libavcodec-dev libavformat-dev libswscale-dev

Step 2：Install Required Python Packages​

python3 -m pip install --upgrade pip
pip3 install mediapipe opencv-python

To enable GPU acceleration using TensorRT and CUDA (included with JetPack), and to maximize system performance:

sudo nvpmodel -m 0
sudo jetson_clocks

4. Running Pose Estimation​

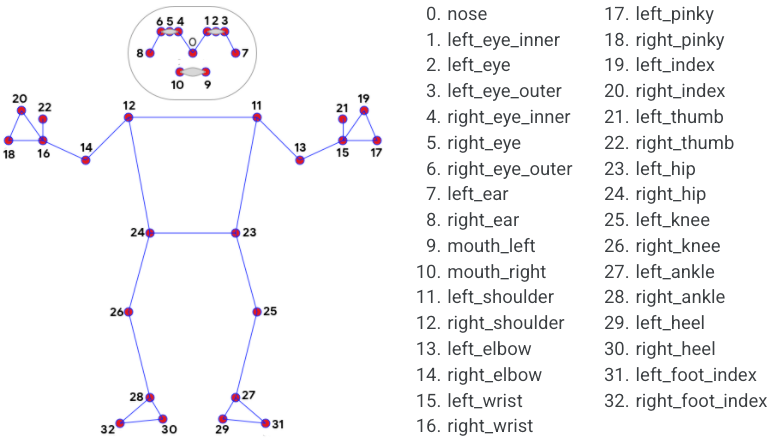

pose

import cv2
import mediapipe as mp

mp_pose = mp.solutions.pose
pose = mp_pose.Pose()

cap = cv2.VideoCapture(0)
while True:
    ret, frame = cap.read()
    if not ret:
        break
    image = cv2.cvtColor(frame, cv2.COLOR_BGR2RGB)
    results = pose.process(image)

    if results.pose_landmarks:
        mp.solutions.drawing_utils.draw_landmarks(
            frame, results.pose_landmarks, mp_pose.POSE_CONNECTIONS)

    cv2.imshow("Pose Estimation", frame)
    if cv2.waitKey(5) & 0xFF == 27:
        break
cap.release()
cv2.destroyAllWindows()

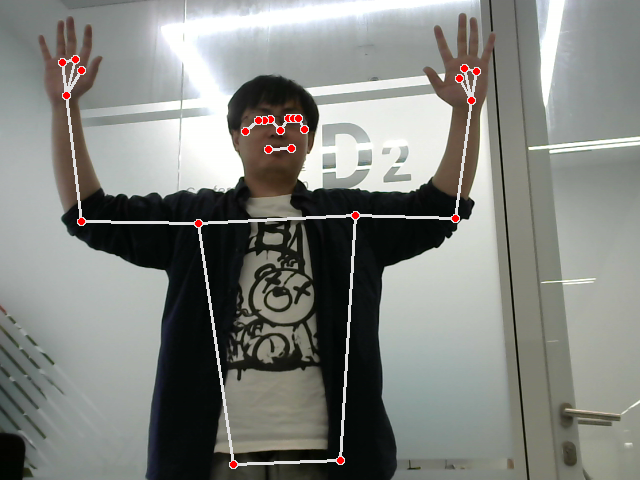

mediapipe_pose_1​

5. Hand Tracking​

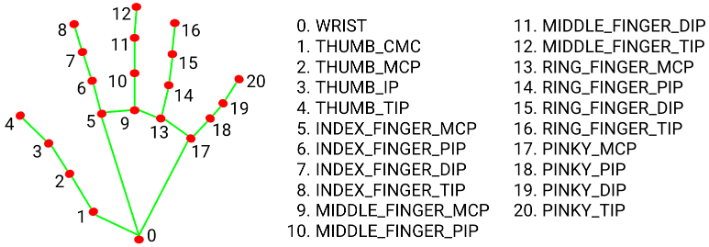

hand

import cv2
import mediapipe as mp
import time

mp_hands = mp.solutions.hands
hands = mp_hands.Hands(min_detection_confidence=0.5, min_tracking_confidence=0.5)
mp_drawing = mp.solutions.drawing_utils

cap = cv2.VideoCapture(0)

while cap.isOpened():
    ret, frame = cap.read()
    if not ret:
        continue
    image = cv2.cvtColor(frame, cv2.COLOR_BGR2RGB)
    results = hands.process(image)
    image = cv2.cvtColor(image, cv2.COLOR_RGB2BGR)

    if results.multi_hand_landmarks:
        for hand_landmarks in results.multi_hand_landmarks:
            mp_drawing.draw_landmarks(image, hand_landmarks, mp_hands.HAND_CONNECTIONS)

    cv2.imshow("Hand Tracking", image)

    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

cap.release()
cv2.destroyAllWindows()

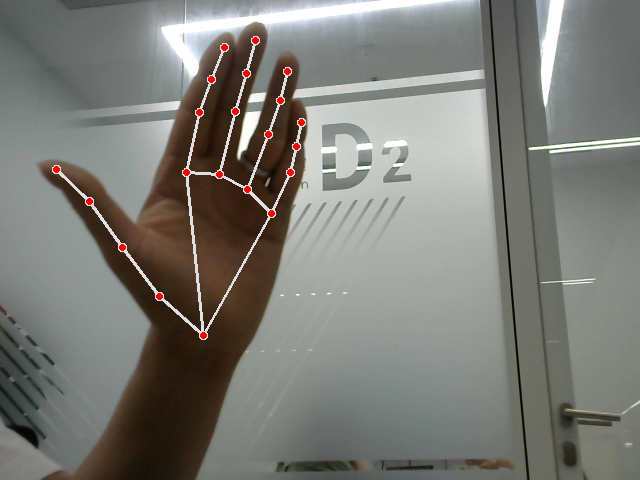

hand

6. Performance and Optimization Tips​

ModeFPS（AGX Orin）GPU UsageAcceleration
Default (CPU)~5–10 FPSLow❌
JetPack GPU~25–40 FPSModerate✅

Tips​

  • Use jetson_clocks and setnvpmodel to maximum performance mode
  • Use multithreaded frame capture with OpenCV
  • Reduce input resolution (e.g., 640×480) to improve frame rate

7. Troubleshooting​

IssueSolution
Import errorEnsure mediapipe is installed via pip
Camera not detectedManually test with cv2.VideoCapture(0)
Low FPSEnable GPU acceleration, lower image resolution, disable drawing
Cannot display windowFor SSH users, run export DISPLAY=:0 or use VNC
